Euroclass B2 , C COAXIAL CABLE (CPR)
Triple Shield 75 Ohm coaxial cable for Broadband Distribution Network
Class A+ , A++

10 Articoli:

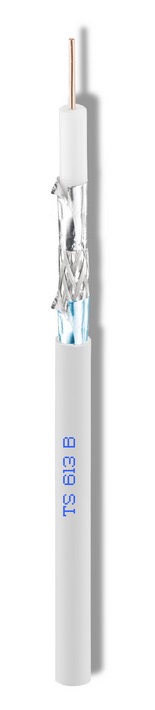

TS613B

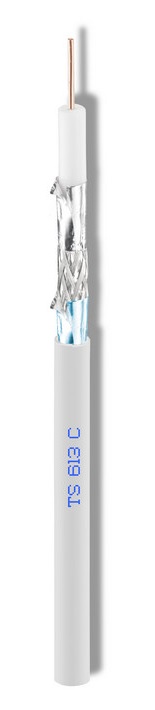

TS613C

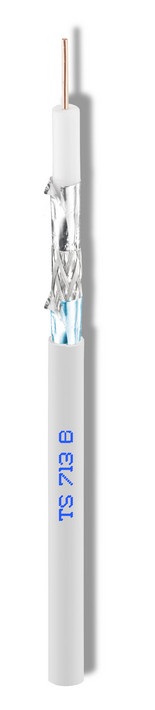

TS713B

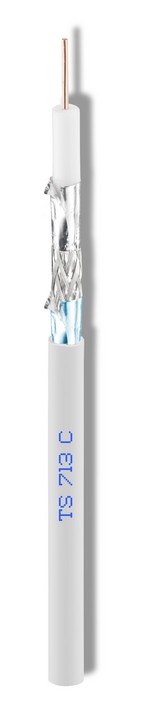

TS713C

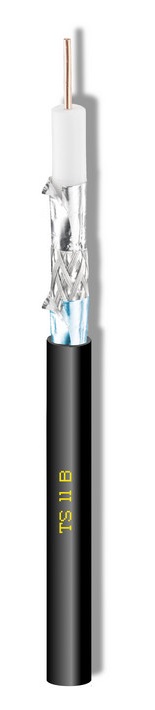

TS11B

TS11C

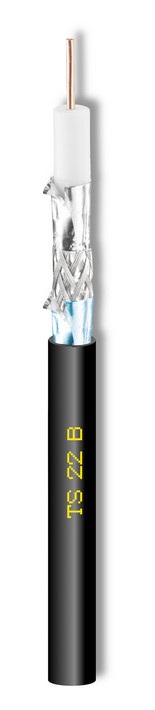

TS22B

TS22C

TS27B

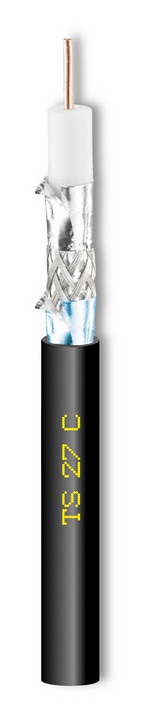

TS27C

CAVEL Code
RG Ref.
Class CPR acc. to UE 305/2011 (DoP)
Availability
: Application
acc. to Standard
CONSTRUCTION DATA
Inner Conductor Ø mm
material
Dielectric Ø mm
material
Film Foil Laminate material
Braid Optical Coverage %
Film Foil material
Outer Sheath Ø mm
material
ELECTRICAL DATA
Impedance Ohm
Attenuation (at 20°C )
at 862 MHz dB/100m
at 2150 MHz dB/100m
Screening Attenuation (SA) Class
RG 6
B2ca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-4

1,00
Cu
4,60
PEG
APAS
73
AP
6,9
LSZH-FR+

75±3@200 MHz

18,5
30,6
A+
RG 6
Cca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-4

1,00
Cu
4,60
PEG
APAS
73
AP
6,9
LSZH-FR

75±3@200 MHz

18,5
30,6
A+

B2ca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-4

1,13
Cu
4,80
PEG
APAS
71
AP
7
LSZH-FR+

75±3@200 MHz

16,0
26,1
A++

Cca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-4

1,13
Cu
4,80
PEG
APAS
71
AP
7
LSZH-FR

75±3@200 MHz

16,0
26,1
A++
RG 11
B2ca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

1,63
Cu
7,20
PEG
APAS
63
AP
10,3
LSZH-FR+

75±2@200 MHz

10,8
18,2
A++
RG 11
Cca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

1,63
Cu
7,20
PEG
APAS
63
AP
10,3
LSZH-FR

75±2@200 MHz

10,8
18,2
A++

B2ca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

2,20
Cu
9,90
PEG
APAS
64
AP
13,1
LSZH-FR+

75±2@200 MHz

9,1
14,9
A++

Cca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

2,20
Cu
9,90
PEG
APAS
64
AP
13,1
LSZH-FR

75±2@200 MHz

9,1
14,9
A++

B2ca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

2,70
Cu
11,50
PEG
APAS
64
AP
15,3
LSZH-FR+

75±2@200 MHz

7,54
12,9
A++

Cca s1a,d1,a1
on demand
DOCSIS 3.1 (Data Over Coax System)
EN 50117-2-3

2,70
Cu
11,50
PEG
APAS
64
AP
15,3
LSZH-FR

75±2@200 MHz

7,54
12,9
A++
