VIDEO SECURITY COAXIAL CABLES
Single and provided with Electrical Leads

13 Articoli:

VSHD40

VSHD40205

VSHD402075

VSHD40210

VSHD70

VSHD70205

VSHD702075

VSHD70210

VSHD80

VSHD80205

VSHD802075

VSHD80210

VSHD113

CAVEL Code
Componenti
RG Ref.
Class CPR acc. to UE 305/2011 (DoP)
Availability
acc. to Standard
CONSTRUCTION DATA
Inner Conductor Ø mm
material
Dielectric Ø mm
material
Film Foil Laminate material
Braid Optical Coverage %
Outer Sheath Ø mm
material
ELECTRICAL DATA
Impedance Ohm
Attenuation (at 20°C )
at 862 MHz dB/100m
Screening Attenuation (SA) Class
Maximum Operating Range
analog/digital m

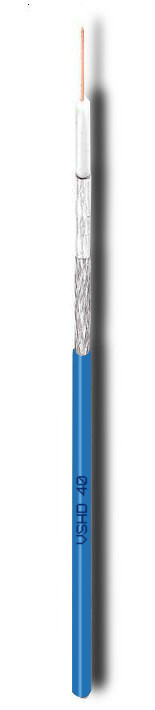

VSHD40



mini RG 59
Dca s2,d2,a1
in stock
EN50117-9-1

0,42
Cu
1,90
PEG
APAS
70
3,6
LSZH

75±3@200 MHz

45,1
A
400 / 80

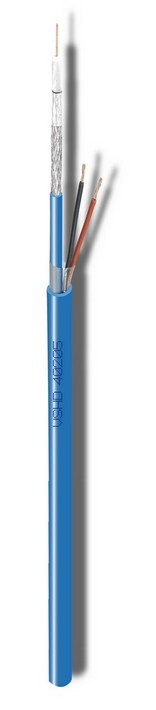

VSHD40205
VSHD40
CE22
CE23
RG 59
Eca
in stock
EN50117-9-1







5,8x6,7
LSZH



45,1

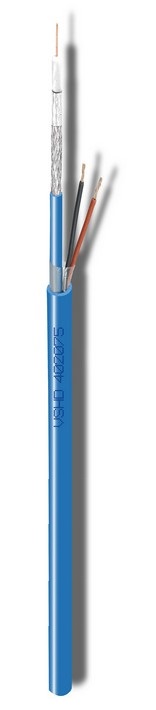

VSHD402075
VSHD40
CE24
CE25
RG 59
Eca
in stock








6,3x7,4
LSZH



45,1

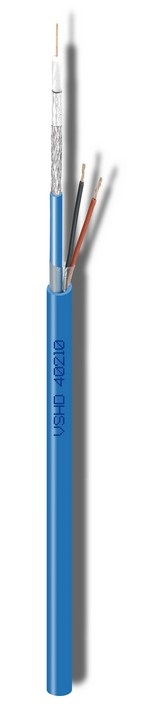

VSHD40210
VSHD40
CE26
CE27
RG 59
Eca
in stock








6,8x7,8
LSZH



45,1


VSHD70
Dca s2,d2,a1
in stock


0,70
Cu
2,90
PEG
APA
73
4,3
LSZH

75±3@200 MHz

27,8
A
700 / 150
VSHD70205
VSHD70
CE22
CE23
RG 59
Eca
in stock








6,35x7,75
LSZH



27,8


VSHD702075
VSHD70
CE24
CE25
RG 59
Eca
in stock








6,55x8,3
LSZH



27,8

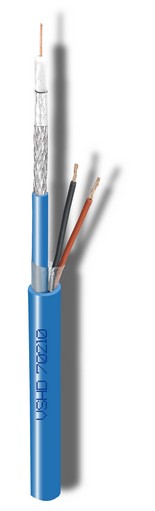

VSHD70210
VSHD70
CE26
CE27
RG 59
Eca
in stock








6,6x8,3
LSZH



27,8

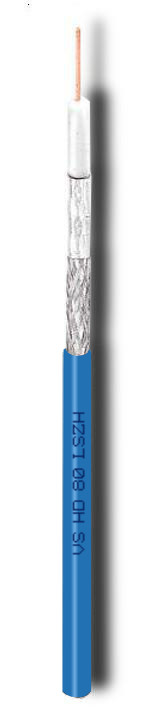

VSHD80



RG 59
Dca s2,d2,a1
in stock
EN50117-9-1

0,80
Cu
3,50
PEG
APA
65
5
LSZH

75±3@200 MHz

23,0
A
1000 / 250

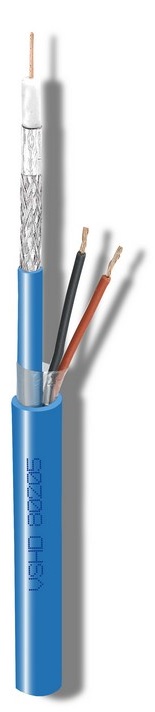

VSHD80205
VSHD80
CE22
CE23
RG 59
Eca
in stock
EN50117-9-1







6,5x8,3
LSZH

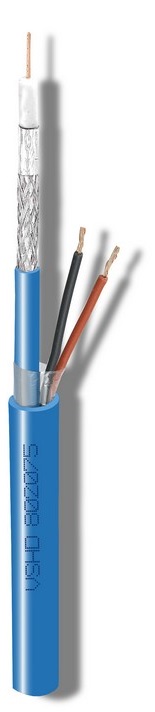

VSHD802075
VSHD80
CE24
CE25
RG 59
Eca
in stock
EN50117-9-1







6,6x9
LSZH

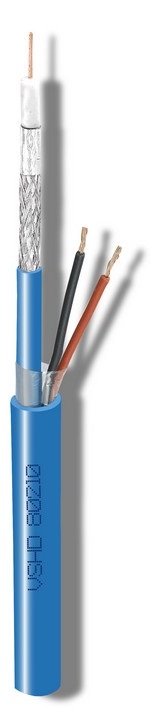

VSHD80210
VSHD80
CE26
CE27
RG 59
Eca
in stock
EN50117-9-1







6,8x9,9
LSZH

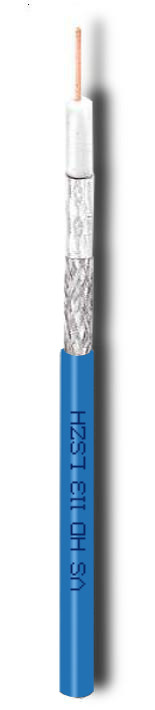

VSHD113
Dca s2,d2,a1
in stock
EN50117-9-1

1,13
Cu
4,80
PEG
APA
72
6,6
LSZH

75±3@200 MHz

17,1
A+
1500 / 300
