CATV DISTRIBUTION Coaxials
Hang-Up Installation by Messenger
acc.to EN 50117

5 Articoli:

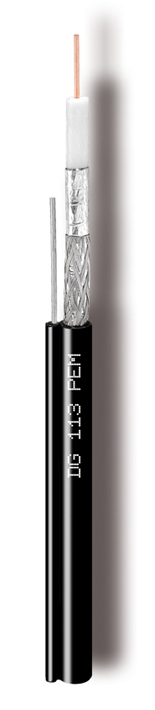

DG113PEM

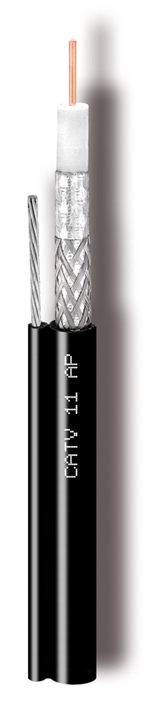

CATV11AP

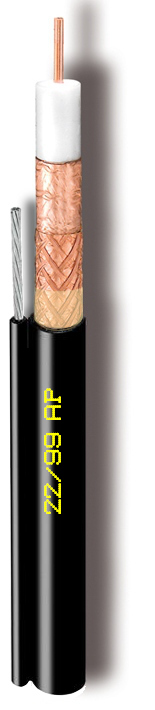

22/99AP

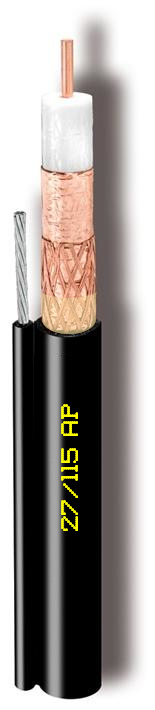

27/115AP

34/145AP

CAVEL Code
RG Ref.
Class CPR acc. to UE 305/2011 (DoP)
Availability
acc. to Standard
CONSTRUCTION DATA
Inner Conductor Ø mm
material
Dielectric Ø mm
material
Film Foil Laminate material
Braid Optical Coverage %
Outer Sheath Ø mm
material
ELECTRICAL DATA
Impedance Ohm
Attenuation (at 20°C )
at 862 MHz dB/100m
at 2150 MHz dB/100m
Screening Attenuation (SA) Class
RG 6+
Fca
on demand
EN 50117-2-5

1,13
Cu
4,80
PEG
APA
72
6,8x11,2
PE

75±3@200 MHz

17,1
27,9
A+
RG 11
Fca
on demand
EN 50117-2-3

1,63
Cu
7,20
PEG
APAS
63
10,1x17
PE

75±2@200 MHz

11,9
19,8
A

Fca
on demand
EN 50117-2-3

2,20
Cu
9,90
PEG
Cu/Pet
55
12,7x18,5
PE

75±2@200 MHz

9,1
14,9
A

Fca
on demand
EN 50117-2-3

2,70
Cu
11,50
PEG
Cu/Pet
52
15x22,5
PE

75±2@200 MHz

7,7
12,8
A+

Fca
on demand
EN 50117-2-3

3,40
Cu
14,50
PEG
Cu
61
19,8x24,2
PE

75±2@200 MHz

6,4
10,6
A+
