50 Ohm WIRELESS

10 Articoli:

WL195N

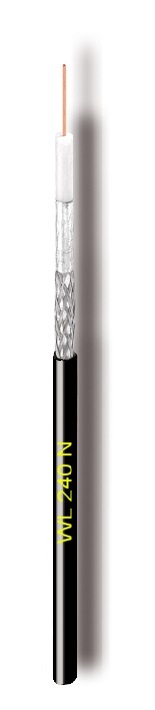

WL240N

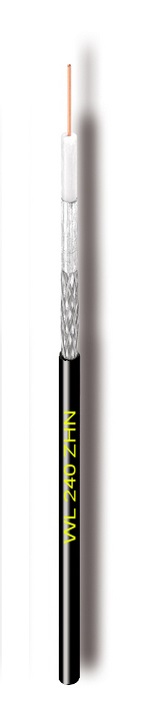

WL240ZHN

WL300

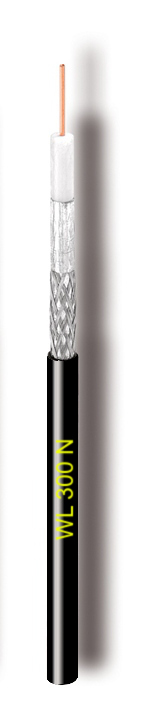

WL300N

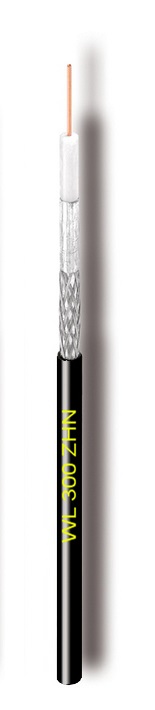

WL300ZHN

WL400

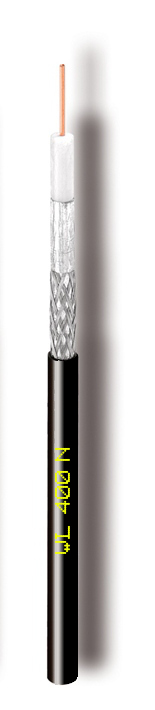

WL400N

WL400ZHN

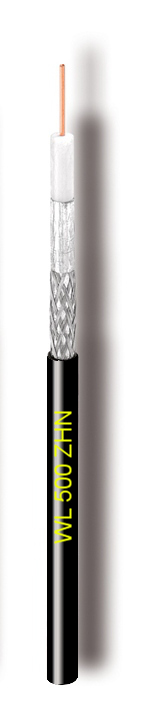

WL500ZHN

CAVEL Code
Class CPR acc. to UE 305/2011 (DoP)
Availability
: Application
acc. to Standard
CONSTRUCTION DATA
Inner Conductor Ø mm
material
Dielectric Ø mm
material
Film Foil Laminate material
Braid Optical Coverage %
Outer Sheath Ø mm
material
ELECTRICAL DATA
Impedance Ohm

on demand
Indoor Installation
CEI-UNEL 36762

1,00
Cu
2,80
PEG
APA
82
4,95
PVC

50±2
Fca
on demand
Indoor Installation
CEI-UNEL 36762

1,40
Cu
3,80
PEG
APA
78
6,1
PVC

50±2
Fca
on demand
Indoor + Outdoor Installation
CEI-UNEL 36762

1,40
Cu
3,80
PEG
APA
77
6,1
LSZH

50±2
Fca
on demand
Exterior and Underground Installation
CEI-UNEL 36762

1,80
Cu
4,80
PEG
APAS
84
7,6
PE

50±2
Fca
on demand



1,80
Cu
4,80
PEG
APAS
84
7,6
PVC

50±2
Fca
on demand
Indoor + Outdoor Installation
CEI-UNEL 36762

1,80
Cu
4,80
PEG
APAS
84
7,6
LSZH

50±2
Fca
on demand
Exterior and Underground Installation
CEI-UNEL 36762

2,70
Cu
7,20
PEG
APAS
82
10,3
PE

50±2
Fca
on demand



2,70
Cu
7,20
PEG
APAS
82
10,3
PVC

50±2
Eca
on demand
Indoor + Outdoor Installation
CEI-UNEL 36762

2,70
Cu
7,20
PEG
APAS
82
10,3
LSZH

50±2
Fca
on demand
Indoor + Outdoor Installation
CEI-UNEL 36762

3,40
Cu
9,40
PEG
APAS
78
12,7
LSZH

50±2
