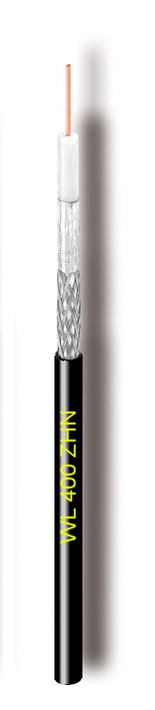

50 Ohm WIRELESS WL400ZHN

Legend
Legend
Class CPR acc. to UE 305/2011 (DoP) Fca
Availability on demand
CONSTRUCTION DATA
Inner Conductor Ø mm 2,70
material Cu
Dielectric Ø mm 7,20
material PEG
Film Foil Laminate material APAS
Braid material CuSn
Braid Optical Coverage % 82
Diameter over Braid Ø mm 7,97
Outer Sheath Ø mm 10,3
material LSZH
PHYSICAL DATA
Copper Content kg/km 80,2
Cable Weight kg/km 147,5
Min bending radius x 1/n mm 100
Max.Tensile Strength N 720
ELECTRICAL DATA
Impedance Ohm 50±2
Capacitance pF/m 78
Velocity Ratio % 86
Attenuation (at 20°C )
at 50 MHz dB/100m 2,6
at 150 MHz dB/100m 4,6
at 220 MHz dB/100m 5,7
at 450 MHz dB/100m 8,7
at 900 MHz dB/100m 12,5
at 1500 MHz dB/100m 16,6
at 1800 MHz dB/100m 18,2
at 2000 MHz dB/100m 19,3
at 2500 MHz dB/100m 22,0
at 4800 MHz dB/100m 29,4
Structural return loss (SRL)
at 5 - 470 MHz dB >30
at 470 - 1000 MHz dB >28
at 1000 - 2000 MHz dB >26
at 2000 - 3000 MHz dB >22
Screening Attenuation (SA)
at . dB >90
DC Conductor Resistance inner/outer Ohm/km 3,4 / 5,4
Loop resistance Ohm/km 8,8
Sheat Insulation voltage (spark test) kV 8,0
Maximum current (Ieff) A 25
