DISTRIBUTION AND TRUNK COAXIAL CABLES (CATV SYSTEMS) DG11CU

Legend
Legend
RG Ref. RG 11
Class CPR acc. to UE 305/2011 (DoP) Fca
Availability in stock
acc. to Standard EN 50117-2-3
Reaction to Fire EN50575
CONSTRUCTION DATA
Inner Conductor Ø mm 1,63
material Cu
Dielectric Ø mm 7,20
material PEG
Film Foil Laminate material Cu/Pet
Braid material Cu
Braid Optical Coverage % 46
Diameter over Braid Ø mm 7,78
Outer Sheath Ø mm 10,1
material PE
PHYSICAL DATA
Copper Content kg/km 34,5
Cable Weight kg/km 83,5
Min bending radius x 1/n mm 100
Max.Tensile Strength N 300
ELECTRICAL DATA
Impedance Ohm 75±2@200 MHz
Capacitance (@1kHz) pF/m 52 ± 2
Velocity Ratio % 85
Attenuation (at 20°C )
at 5 MHz dB/100m 1,1
at 10 MHz dB/100m 1,5
at 30 MHz dB/100m 2,2
at 50 MHz dB/100m 2,8
at 200 MHz dB/100m 5,6
at 300 MHz dB/100m 6,9
at 470 MHz dB/100m 8,8
at 862 MHz dB/100m 12,3
at 1000 MHz dB/100m 13,2
at 1750 MHz dB/100m 17,9
at 2150 MHz dB/100m 20,1
at 2400 MHz dB/100m 21,0
at 3000 MHz dB/100m 24,5
Structural return loss (SRL)
at 5 - 470 MHz dB >30
at 470 - 1000 MHz dB >28
at 1000 - 2000 MHz dB >23
at 2000 - 3000 MHz dB >20
Screening Attenuation (SA) Class A
at 30 - 1000 MHz dB >85
at 1000 - 2000 MHz dB >75
at 2000 - 3000 MHz dB >65
DC Conductor Resistance inner/outer Ohm/km 8,5 / 11,6
Loop resistance Ohm/km 20,1
Sheat Insulation voltage (spark test) kV 8,0
Maximum current (Ieff) A 16
DISTRIBUTION AND TRUNK COAXIAL CABLES (CATV SYSTEMS)
Standard Packing
  • 2 x 100m = 200m Plastic reel in Carton
    Single-unit Package Reel Fits CABLEBOX DS250
    Item   DG11CUM2P3519100
    Unith Length m 100 Unit Length Barcode EAN13 8000023840104
    Unit Packing Content m 2 x 100m = 200m Unit Packing Barcode EAN13 8000023830204
  • 1 x 250m Wooden Drum
    Single-unit Package Drum
    Item   DG11CUM4L5525250
    Unith Length m 250 Unit Length Barcode EAN13 8000023850257
    Unit Packing Content m 1 x 250m Unit Packing Barcode EAN13 8000023850257
  • 1 x 500m Wooden Drum
    Single-unit Package Drum
    Item   DG11CUM5L5530500
    Unith Length m 500 Unit Length Barcode EAN13 8000023850509
    Unit Packing Content m 1 x 500m Unit Packing Barcode EAN13 8000023850509
Stripper
  • CS17
    Stripper for Distribution Cables
    male
Connector
for INDOOR installation
  • F163
    Series F Crimp
    F Crimp
  • FA17/73
    Series F Twist-On
    F Twist-On
Pliers
  • CRT05BL
    Crimping Tool
    for F connectors, 0,324" and 0,475"
  • -
for OUTDOOR installation
  • FC11QM
    Series F Compression
    Quick Mount
Pliers
  • COT02BL
    Compression Tool
    for F connectors
for UNDERGROUND (Hardline) installation
  • IEC14M-32
    Series IEC (toolless)
    male
  • NM-32
    N Connector
    male

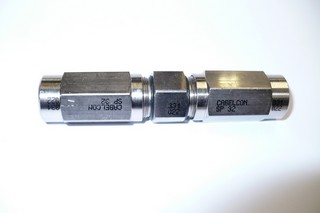

  • SP-32
    Adapter
    Splice Connector
  • SR01-32
    Adapter
    for 11/50 - RG11
  • 3,5/12M-TL232
    3,5/12" connector
    male
  • FM-TL232
    Series F
    male
Adapter
  • DR01
    Adapter
    Nut and Washer
  • F81-HQ
    Adapter
    F Adapter FF
  • FM-FF90
    Adapter
    FM - FF 90°
  • MM-F703
    Adapter
    F Adapter MM
  • MM-FR703
    Adapter
    F Adapter MM
Other Tools
  • C75-5L
    Indoor Fittings
    75 Ohm Terminator
  • CCFM75GI
    Indoor Fittings
    75 Ohm Terminator
  • SAT2VS
    Indoor Fittings
    F SAT 2-way Splitter
