| Class CPR acc. to UE 305/2011 (DoP) | Fca | |
| Availability | on demand | |
| Application | DOCSIS 3.1 (Data Over Coax System) | |
| acc. to Standard | EN 50117-2-3 | |
| Reaction to Fire | EN50575 | |
| CONSTRUCTION DATA | ||
| Inner Conductor | Ø mm | 3,40 |
| material | Cu | |
| Dielectric | Ø mm | 14,50 |
| material | PEG | |
| Film Foil Laminate | material | Cu |
| Braid | material | Cu |
| Braid Optical Coverage | % | 61 |
| Diameter over Braid | Ø mm | 15,26 |
| Outer Sheath | Ø mm | 19,8 |
| material | PE | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 153,5 |
| Cable Weight | kg/km | 329,7 |
| Min bending radius x 1/n | mm | 250 |
| Max.Tensile Strength | N | 1200 |
| ELECTRICAL DATA | ||
| Impedance | Ohm | 75±2@200 MHz |
| Capacitance (@1kHz) | pF/m | 53 ± 2 |
| Velocity Ratio | % | 85 |
| Attenuation (at 20°C ) | ||
| at 5 MHz | dB/100m | 0,5 |
| at 10 MHz | dB/100m | 0,7 |
| at 30 MHz | dB/100m | 1,1 |
| at 50 MHz | dB/100m | 1,4 |
| at 200 MHz | dB/100m | 2,9 |
| at 300 MHz | dB/100m | 3,6 |
| at 470 MHz | dB/100m | 4,6 |
| at 862 MHz | dB/100m | 6,4 |
| at 1000 MHz | dB/100m | 6,9 |
| at 1750 MHz | dB/100m | 9,4 |
| at 2150 MHz | dB/100m | 10,6 |
| at 2400 MHz | dB/100m | 11,5 |
| at 3000 MHz | dB/100m | 13,3 |
| Structural return loss (SRL) | ||
| at 5 - 470 MHz | dB | >25 |
| at 470 - 1000 MHz | dB | >24 |
| at 1000 - 2000 MHz | dB | >21 |
| at 2000 - 3000 MHz | dB | >20 |
| Transfer Impedance (Zt) | Class | A+ |
| 5 - 30 MHz | mOhm/m | < 2,5 |
| Screening Attenuation (SA) | Class | A+ |
| at 30 - 1000 MHz | dB | >95 |
| at 1000 - 2000 MHz | dB | >85 |
| at 2000 - 3000 MHz | dB | >80 |
| DC Conductor Resistance inner/outer | Ohm/km | 2,1 / 2,6 |
| Loop resistance | Ohm/km | 4,7 |
| Sheat Insulation voltage (spark test) | kV | 12,0 |
| Maximum current (Ieff) | A | 34 |
DISTRIBUTION AND TRUNK COAXIAL CABLES (CATV SYSTEMS)
Standard Packing
Stripper
Connector
-

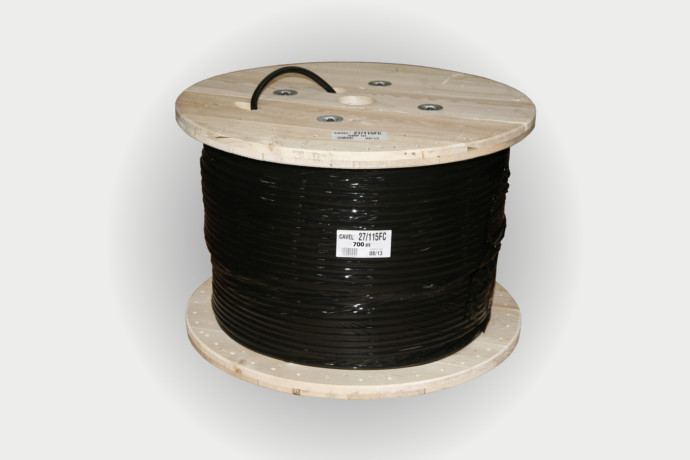

Mod. WD700
-
1 x 700m Wooden Drum Single-unit Package Drum
Item 34/145FCMEL11063700 Unith Length m 700 Unit Length Barcode EAN13 8000006650706 Unit Packing Content m 1 x 700m Unit Packing Barcode EAN13 8000006650706
-
CS34
Stripper for Distribution Cables
just for Trunk 34/145
-
3,5/12M-46
3,5/12" connector
male
-
5/8MU-46
5/8" connector
male
-
IEC14M-46
Series IEC (toolless)
male
-
SR01-46
Adapter
for 11/50FC - 34/145
-
FM-TL646
Series F
male
