| Class CPR acc. to UE 305/2011 (DoP) | Dca s2,d2,a1 | |
| Availability | in stock | |
| Application | CATV | |
| Indoor + Outdoor Installation | ||
| acc. to Standard | EN50117-11-2 | |
| CEI-UNEL 36762 | ||
| Reaction to Fire | EN50575 | |
| CONSTRUCTION DATA | ||
| Inner Conductor | Ø mm | 2,70 |
| material | Cu | |
| Dielectric | Ø mm | 11,50 |
| material | PEG | |
| Film Foil Laminate | material | Cu/Pet |
| Braid | material | Cu |
| Braid Optical Coverage | % | 52 |
| Diameter over Braid | Ø mm | 12,20 |
| Outer Sheath | Ø mm | 15 |
| material | LSZH | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 83,9 |
| Cable Weight | kg/km | 208,3 |
| Min bending radius x 1/n | mm | 200 |
| Max.Tensile Strength | N | 800 |
| ELECTRICAL DATA | ||
| Impedance | Ohm | 75±2@200 MHz |
| Capacitance (@1kHz) | pF/m | 52 ± 2 |
| Velocity Ratio | % | 85 |
| Attenuation (at 20°C ) | ||
| at 5 MHz | dB/100m | 0,8 |
| at 10 MHz | dB/100m | 1,0 |
| at 30 MHz | dB/100m | 1,4 |
| at 50 MHz | dB/100m | 1,8 |
| at 200 MHz | dB/100m | 3,5 |
| at 300 MHz | dB/100m | 4,3 |
| at 470 MHz | dB/100m | 5,5 |
| at 690 MHz | dB/100m | 6,9 |
| at 1000 MHz | dB/100m | 8,3 |
| at 1750 MHz | dB/100m | 11,0 |
| at 2150 MHz | dB/100m | 12,5 |
| at 2400 MHz | dB/100m | 13,3 |
| at 3000 MHz | dB/100m | 16,6 |
| Structural return loss (SRL) | ||
| at 5 - 470 MHz | dB | >26 |
| at 470 - 1000 MHz | dB | >23 |
| at 1000 - 2000 MHz | dB | >20 |
| at 2000 - 3000 MHz | dB | >18 |
| Transfer Impedance (Zt) | Class | A |
| 5 - 30 MHz | mOhm/m | < 4 |
| Screening Attenuation (SA) | Class | A+ |
| at 30 - 1000 MHz | dB | >95 |
| at 1000 - 2000 MHz | dB | >95 |
| at 2000 - 3000 MHz | dB | >75 |
| DC Conductor Resistance inner/outer | Ohm/km | 3,4 / 5,8 |
| Loop resistance | Ohm/km | 9,2 |
| Sheat Insulation voltage (spark test) | kV | 8,0 |
| Maximum current (Ieff) | A | 25 |
SAFETY COAXIAL CABLES - LSZH OUTER SHEATH
Standard Packing
Stripper
Connector
-
Mod. WD500
-
1 x 500m Wooden Drum Single-unit Package Drum
Item 27/115ZHM8L8047500 Unith Length m 500 Unit Length Barcode EAN13 8000050150504 Unit Packing Content m 1 x 500m Unit Packing Barcode EAN13 8000050150504
-
CS27
Stripper for Distribution Cables
just for Trunk 27/115
-
5/8MU-44
5/8" connector
male
-

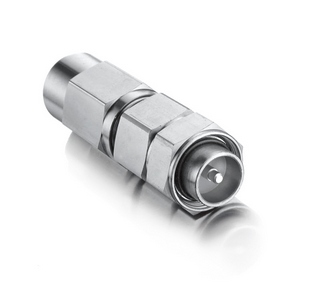

IEC14M-44
Series IEC (toolless)
male
-
SR21-44
Adapter
for 11/50FC - 27/115
-
FM-TL444
Series F
male
