ITALIANA CONDUTTORI SRL

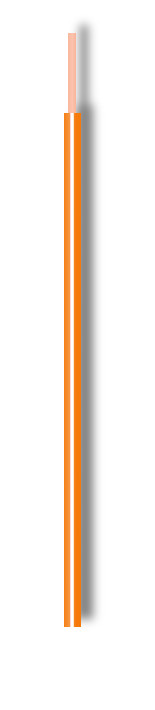

Telephone Cable CT20

Legend

Legend

ACR Attenuation to Crosstalk Ratio

Al Aluminium

AP Al/Polyester

APAS Al/Polyester/Al/Surline (glue)

APJ Al/Polyester "J folded"

APS Al/Polyester/Surlyne (glue)

AWG American Wires Gauge

CAI Confederation Aerial Industries (UK)

CCS Copper Clad Steel (FeCu)

Cu Copper

Cu/Pet Copper/Polyester

CuSn Tinned Copper

FeCu Copper Clad Steel

FeZn Zinc Plated Steel

LSZH Low Smoke Zero Halogen

N Newton ( 0.1 kg approx.)

NEXT Next End Cross Talk

PE Polyethylene

PEG Gas Injected Physical Foam PE

Pet Polyester

PJ Petrol Jelly Filling

PVC Poly-vinil-chloride

PVCII Non-migrating PVC

SA Screening Attenuation

TI Shield Transfer Impedence (Zt)

Zt Shield Transfer Impedence

APA Al/Polyester/Al

Attenuation's Calculation

Voltage Drop's Calculation

CONSTRUCTION DATA
Inner Conductor	Ø mm	0,51
	material	Cu
Outer Sheath	Ø mm	0,9
	material	HDPE
PHYSICAL DATA
Copper Content	kg/km	1,8
Cable Weight	kg/km	2,2
