DISTRIBUTION AND TRUNK COAXIAL CABLES (CATV SYSTEMS)
Outdoor and Underground Installation
acc. to EN 50117

9 Articoli:

11/50AP

CATV11

RG11FC

11/50FC

17/73FC

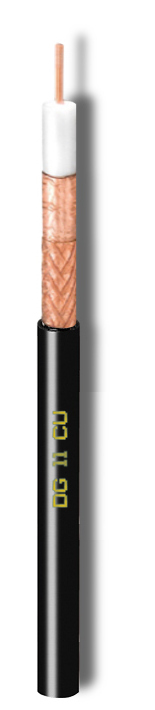

DG11CU

22/99FC

27/115FC

34/145FC

CAVEL Code
RG Ref.
Class CPR acc. to UE 305/2011 (DoP)
Availability
: Application
acc. to Standard
CONSTRUCTION DATA
Inner Conductor Ø mm
material
Dielectric Ø mm
material
Film Foil Laminate material
Braid Optical Coverage %
Outer Sheath Ø mm
material
ELECTRICAL DATA
Impedance Ohm
Attenuation (at 20°C )
at 862 MHz dB/100m
at 2150 MHz dB/100m
Screening Attenuation (SA) Class
RG 6+

in stock
Hung-up installation
EN50117-10-2

1,13
Cu
4,80
PEG
Cu/Pet
59
7,3x13,2
PE

75±3@200 MHz


27,3
A

Fca
on demand
Exterior and Underground Installation
EN50117-11-2

1,63
Cu
7,20
PEG
APAS
63
10,1
PE

75±2@200 MHz


20,0
A
RG 11
Fca
on demand
Exterior and Underground Installation
EN50117-11-2

1,63
FeCu
7,20
PEG
APAS
65
10,1
PE

75±2


20,0
A
RG 6+
Fca
on demand
Exterior and Underground Installation
EN50117-10-2

1,13
Cu
4,80
PEG
Cu/Pet
59
7,3
PE

75±3@200 MHz


27,3
A
RG 11
Fca
in stock
CATV
EN50117-11-2

1,63
Cu
7,20
PEG
Cu/Pet
64
10,1
PE

75±2@200 MHz


20,0
A
RG 11
Fca
in stock
EN50117-11-2

1,63
Cu
7,20
PEG
Cu/Pet
46
10,1
PE

75±2@200 MHz

12,3
20,1
A

Fca
on demand
CATV
EN50117-11-2

2,20
Cu
9,90
PEG
Cu/Pet
55
12,7
PE

75±2@200 MHz


16,0
A

Fca
in stock
CATV
EN50117-11-2

2,70
Cu
11,50
PEG
Cu/Pet
52
15
PE

75±2@200 MHz


12,5
A+

Fca
on demand
CATV
EN50117-11-2

3,40
Cu
14,50
PEG
Cu/Pet
70
19,8
PE

75±2@200 MHz


10,6
A+
